DKT Engineering is one of the leading top-grade Timing Pulley Suppliers in India and provides some of the finest custom and regular versions of timing pulley items for a wide variety of applications. Our products have several benefits over traditional pulleys and chain drives. The offered timing pulleys are created by our skilled designers using high-quality materials under the supervision of experienced experts and cutting-edge technology to ensure flawless performance at the end of the user's journey. We not only use the finest materials to make our timing pulley products, but we also coat them with a finish that avoids rust or degradation in the future.

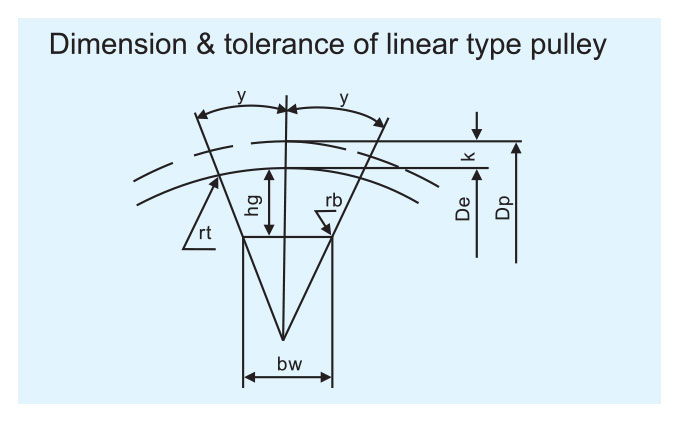

TYPE | bw | hg | y+1.5° | rb | rt | 2k |
MXL | 0.84 ± 0.05 | 0.69 | 20 | 0.35 | 0.13 | 0.508 |
XXL | 1.14 ± 0.05 | 0.84 | 25 | 0.35 | 0.30 | 0.508 |
XL | 1.32 ± 0.05 | 1.65 | 25 | 0.41 | 0.64 | 0.508 |
L | 3.05 ± 0.01 | 2.67 | 20 | 1.19 | 1.17 | 0.762 |
H | 4.19 ± 0.13 | 3.05 | 20 | 1.60 | 1.6 | 1.372 |
XH | 7.90 ± 0.15 | 7.14 | 20 | 1.98 | 2.39 | 2.794 |
XXH | 12.17 ± 0.18 | 10.31 | 20 | 3.96 | 3.18 | 3.048 |

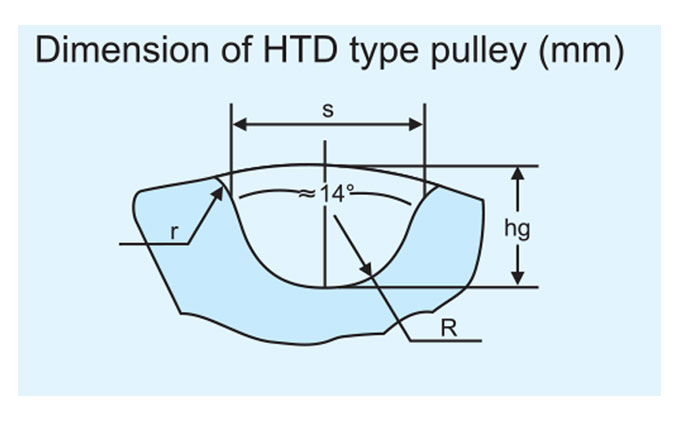

TYPE | Pitch | hg Tooth height | Root circle radius | Groove width | Top circle radius | Angle |
3M | 3 | 1.28 | 0.91 | 1.90 | 0.3 | -14° |
SM | 5 | 2.16 | 1.56 | 3.25 | 0.48 | -14° |
8M | 8 | 3.54 | 2.57 | 5.35 | 0.8 | -14° |
14 | 14 | 6.20 | 4.65 | 9.80 | 1.4 | -14° |

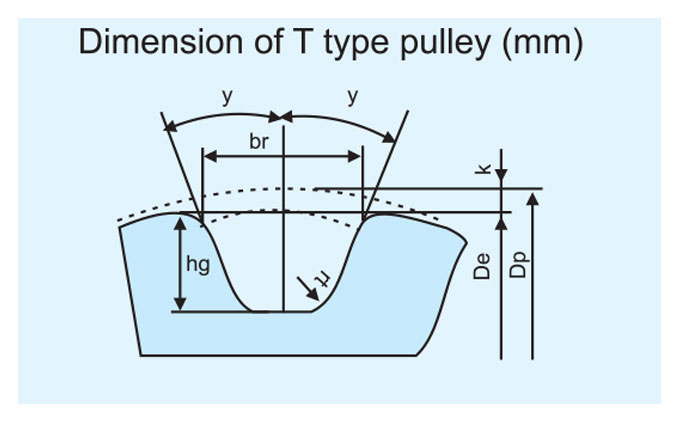

TYPE | SE br<20 | N br<20 | SE hg<20 | N hg<20 | y Grade | rt | rb | 2k | ||||
T2.5 | 1.75 | +0.050 | 1.83 | +0.050 | 0.75 | +0.050 | 1 | 25 | 0.2 | 0.3 | +0.050 | 0.6 |
TS | 2.96 | +0.050 | 3.32 | +0.050 | 1.25 | +0.050 | 1.95 | 25 | 0.4 | 0.6 | +0.050 | 0.85 |
T10 | 6.02 | +0.10 | 6.57 | +0.10 | 2.6 | +0.10 | 3.4 | 25 | 0.6 | 0.8 | +0.10 | 1.85 |
T20 | 11.65 | +0.150 | 12.6 | +0.150 | 5.2 | +0.130 | 6 | 25 | 0.8 | 1.2 | +0.10 | 2.83 |

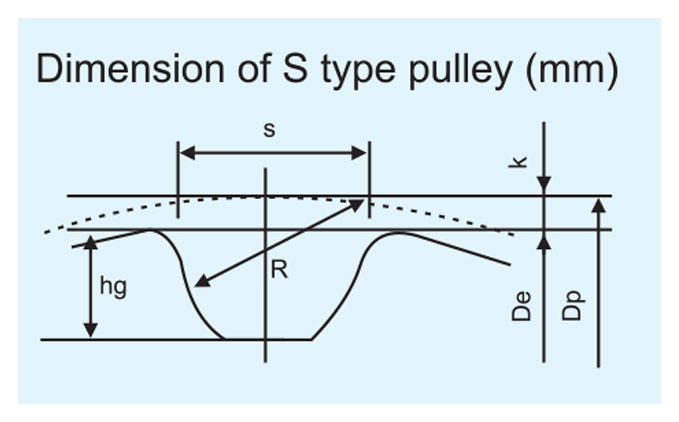

TYPE | Pitch | Tooth height | Root circle radius | Groove width | 2k |
S2M | 2 | 0.76 | 1.325 | 1.30 | 0.508 |
S3M | 3 | 1.11 | 1.975 | 1.95 | 0.762 |
S4.5M | 4.5 | 1.59 | 2.98 | 2.93 | 0.762 |
S5M | 5 | 1.89 | 3.275 | 3.25 | 0.96 |
S8M | 8 | 2.83 | 5.30 | 5.20 | 1.372 |
S14M | 14 | 4.95 | 9.28 | 9.10 | 2.794 |
We are a well-known Timing pulley Exporters In India, we deliver an astounding range of Timing pulley that can be employed in a wide spectrum of industries. Timing pulley creators ensure that the timing teeth perfectly engage into the metal belt openings and that the timing pockets grasp lugs on the inner diameter of the metal belt. Timing pulley creators ensure that the timing teeth perfectly engage into the metal belt openings and that the timing pockets grasp lugs on the inner diameter of the metal belt. We are an actively committed manufacturer and supplier of quality assured Timing Pulley, backed by a team of professional engineers. Our timing pulleys are available in a variety of specifications to meet the application needs of our customers and they can also be customized to meet the client’s specifications. Our quality controllers thoroughly monitor them on various criteria to ensure their reliability and high power. Furthermore, our clients can obtain these timing pulleys from us within the specified time frame and that too at a reasonable price.
