Flat Belt

  • Project Name: Flat Belt

A Leading Flat Belt Manufacturers In India

Our esteemed customers can obtain this belt from us at market-leading rates.

In India, we are a major Flat Belt Suppliers. They are made from the highest quality raw materials and advanced techniques in synchronization to set industrial norms and have a wide range of uses in a variety of industries. We have carved out a distinct niche in the industry by manufacturing and supplying the highest quality Flat Belt. The provided belt is widely used in the food, chemical, medicinal, and other sectors because it is precisely made with the utmost consideration. Also, to ensure that we provide a flawless collection to our customers, our quality controllers rigorously test the provided belt against a variety of quality criteria.

Good Quality Of Flat Belt

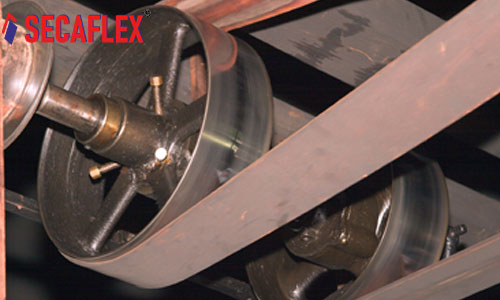

We are a leading Flat Belt Exporters in India. Since our inception, we have been instrumental in providing high-grade Flat Belts that are easy to clean and have an outstanding grip. These belts are used where the two shafts are apart by a certain distance.Flat belts are intended for light-duty power transfer as well as high-performance conveying and are ideally suited for applications requiring small pulleys and big central distances. Flat belts can attach inside and outside pulleys and are available in both endless and jointed designs. They have a high power transmission quality, are low in cost, and are simple to use and attach. Flat belts also have energy efficiency, long service life for belts and pulleys, reduced downtime and higher output, and low noise generation due to smooth belt running. Also, we offer these flat belts in a variety of specifications to meet the needs of our customers.

  • High tensile strength
  • High power transmission
  • Dimensional accuracy
  • Resistant to oils and greases
  • Resistant to benzene and benzole
  • Easy to install
  • Abrasion and Cut resistant
  • Chemical, Oil & Water-resistant
  • Strong & Flexible
  • Non-absorbent & Non-Fraying
  • Easily cleaned & excellent grip.
  • High tensile strength
  • High power transmission
  • Dimensional accuracy
  • Resistant to oils and greases
  • Resistant to benzene and benzole
  • Easy to install
  • Abrasion and Cut resistant
  • Chemical, Oil & Water-resistant
  • Strong & Flexible
  • Non-absorbent & Non-Fraying
  • Easily cleaned & excellent grip.
  • Food industry
  • Packaging industry
  • Metal parts stamping
  • Ceramic industry
  • Paper & Printing industry
  • Chocolate & Confectionery industries
  • Automotive industry.

Tangential & Transmission Belts

We offer these belts with highly oriented Polyamide sheet for strength and high abrasion resistant imported X-NBR* rubber friction covers.
  • High Elastic modulus
  • Flexible
  • Constant co-efficient of friction
  • High wear resistant
  • Good damping properties
Grade Construction Traction Layer Total Elongation Min Pulley
Top Cover                                                          Reverse Cover Thickness 1% strain Dia
Material Color Material Color mm N/mm mm
VS-140 X-NBR* Dark Green I Blue X-NBR* Yellow I Grey Polyamide 1.70 6.0 25
VS-141 X-NBR* Dark Green I Blue X-NBR* Yellow I Grey Polyamide 2.30 6.0 25
VS-250 X-NBR* Dark Green I Blue X-NBR* Yellow I Grey Polyamide 2.30 11.0 60
VX-250E X-NBR* Dark Green I Blue X-NBR* Yellow I Grey Polyamide 2.60 11.0 60
VS-251 X-NBR* Dark Green I Blue X-NBR* Yellow I Grey Polyamide 3.00 11.0 60
VS-321 X-NBR* Dark Green I Blue X-NBR* Yellow I Grey Polyamide 3.20 13.0 110
VS-390 X-NBR* Dark Green I Blue X-NBR* Yellow I Grey Polyamide 3.20 17.0 120
VS-391 X-NBR* Dark Green I Blue X-NBR* Yellow I Grey Polyamide 4.00 17.0 120

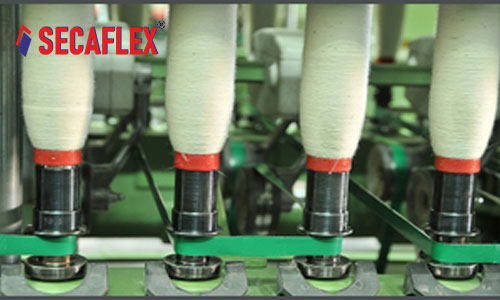

Spindle Tape

We offers energy efficient Spindle tapes for spinning for Ring frame and doubling machines .

Features:

  • Permanently anti static in nature.
  • High grip & high resistance to abrasion.
  • Constant coefficient of friction.
Grade Construction Traction Layer Total Elongation Min Pulley
Top Cover Reverse Cover Thickness 1% strain Dia
Material Color Material Color mm N/mm mm
D5 NBR Dark Green FABRIC* Brown I White 0.00 0.65 2.5 15
D8 NBR Dark Green FABRIC* Brown I White 0.20 0.85 4.0 20

Leather & Fabric Series

We offers a complete range of Leather nylon sandwich belting for various applications and industries as follows :
  • Constant co-efficient of friction
  • Resistance to oils
  • High modulus of elasticity
Grade Construction Traction Layer Total Elongation Min Pulley
Top Cover                                                        Reverse Cover Thickness 1% strain Dia
Material Color Material Color mm N/mm mm
LT-60 Fabric* Green I Black I Red Leather Grey Polyamide 2.75 6.0 35
LT-80 Fabric* Green I Black I Red Leather Grey Polyamide 3.15 8.0 60
LT-100 Fabric* Green I Black I Red Leather Grey Polyamide 3.35 11.0 90
LT-160 Fabric* Green I Black I Red Leather Grey Polyamide 4.15 16.0 200
LT240 Fabric* Green I Black I Red Leather Grey Polyamide 5.15 24.0 280
LT320 Fabric* Green I Black I Red Leather Grey Polyamide 6.15 32.0 380
LT-400 Fabric* Green I Black I Red Leather Grey Polyamide 7.15 40.0 460

DKT Engineering Enterprises

DKT Engineering Enterprises has vast experience in manufacturing conveyor belts in India. We are providing high quality products to our clients Since 2010.
